WEIGHT INDICATOR TYPE ASI15
ASI-15 type weight indicator measure load in cable dead line using anchor.
It is designed for measuring, indicating and recording the hook load and fixing dead line end of the cable, handling system of the drilling rig which does not exceed the maximum load in cable 15tf(150KN).
ASI-15 equipment is mounted on the drilling rig or workover rig.

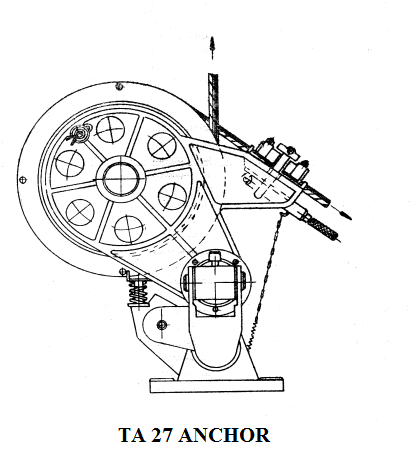

In order to achieve the functions mentioned, use a dead line anchor with a cable drum, a hydraulic transducer and a pressure gauge indicating and recording equipment.
ASI-15 is specific equipment drilling rig but you can use in other areas (cableways, conveyors, cable anchorages, etc..) Providing appropriate adaptation and use not exceeded the maximum load 15tf(150kN)
SPECIFICATIONS:
- Maximum load in dead line of the cable: 15tf(150kN).
- Cable drum diameter: 350mm
- Precision-class (a combination of units): 3
- Cable-drilling diameters: 22-28mm
- Hydraulic transducer-type: TH 224
- Maximum Pressure transducer (Corresponding force 150kN): 71 ± 1 bar
- Temperature: -30 ° C. ..... 55 ° C
- Hydraulic-circuit filled special fluid depending on the season
Indicator characteristics
Indicator Type: IS 15
Accuracy: 1.5
System pressure: 71 ± 1 bar
Dial units KN
Number of crane wire 6 and 8
Degree of Protection: IP54
Temperature: -30 ° C. ..... 55 ° C
Vernier-indicator ratio 1:4
